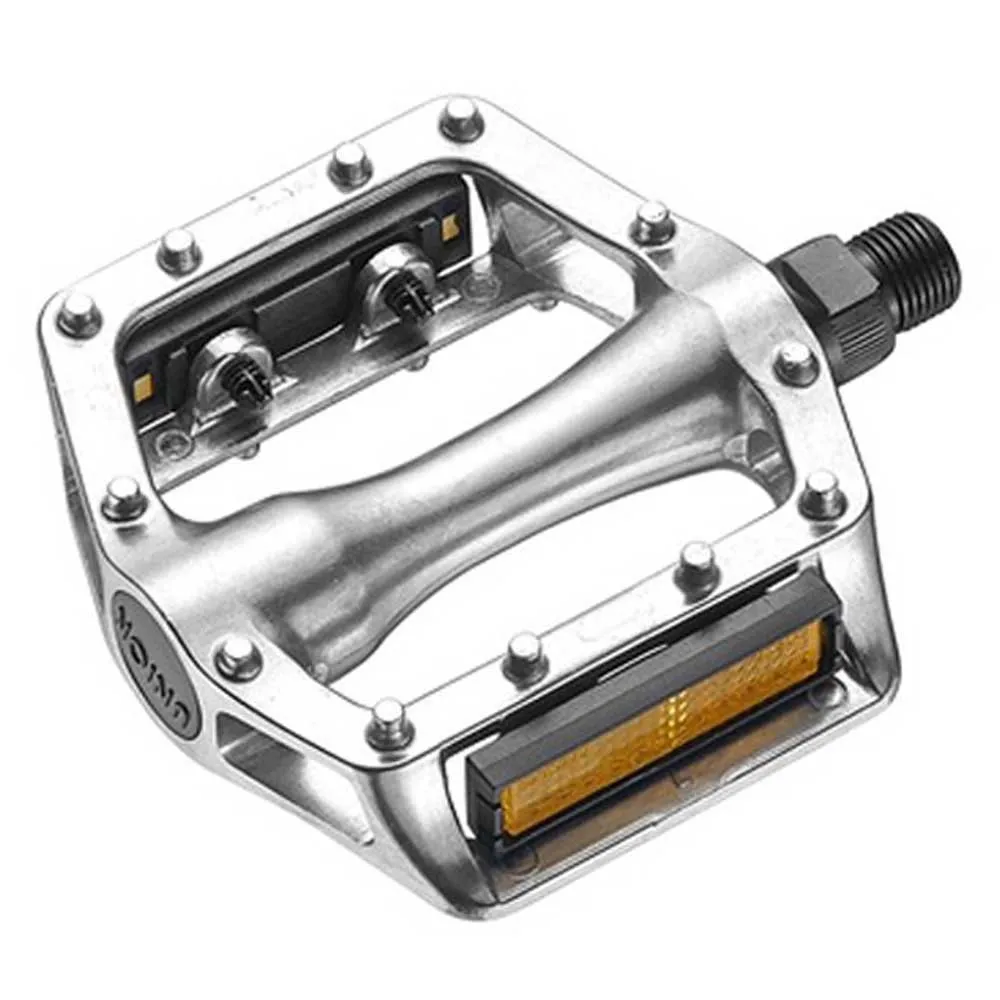

Union SP-102 1/2´´ Pedals

A bicycle pedal with a die cast aluminium body, specially designed to use on Freestyle and BMX bikes.

– The pedals are equipped with sealed and durable cone ball bearings
– The pedals are fitted with approved retro-reflectors on two sides

Pedal type:
– Aluminium Pedal, shiny ball polished and black powder coated

Bearing:
– Adjustable cone ball bearing system on both sides
– With 11 x 5/32´´ bearing balls each side

Axle:
– Boron-steel, heat treated to 75HRA (+/-3) case hardness
– With 9/16´´ x 20TPI threading

Retro Reflectors:
– Snap on reflectors on both sides
– Approved (BS, JIS, TPP) and according to German StVZO regulations (K370 / K369)

Standards:
– The pedal passed the TÜV test and is certificated to meet the EN standard

Specifications:

– Body: aluminium
– Axle: boron steel
– Bearing: adjustable ball type
– Reflector: approved snap-on
– Weight:499 gram/pair

Dimensions:
– 111 x 100 x 32 mm (Length x Width x Height)
– Length maximum pedal length while mounted (protruding out of the crank)
