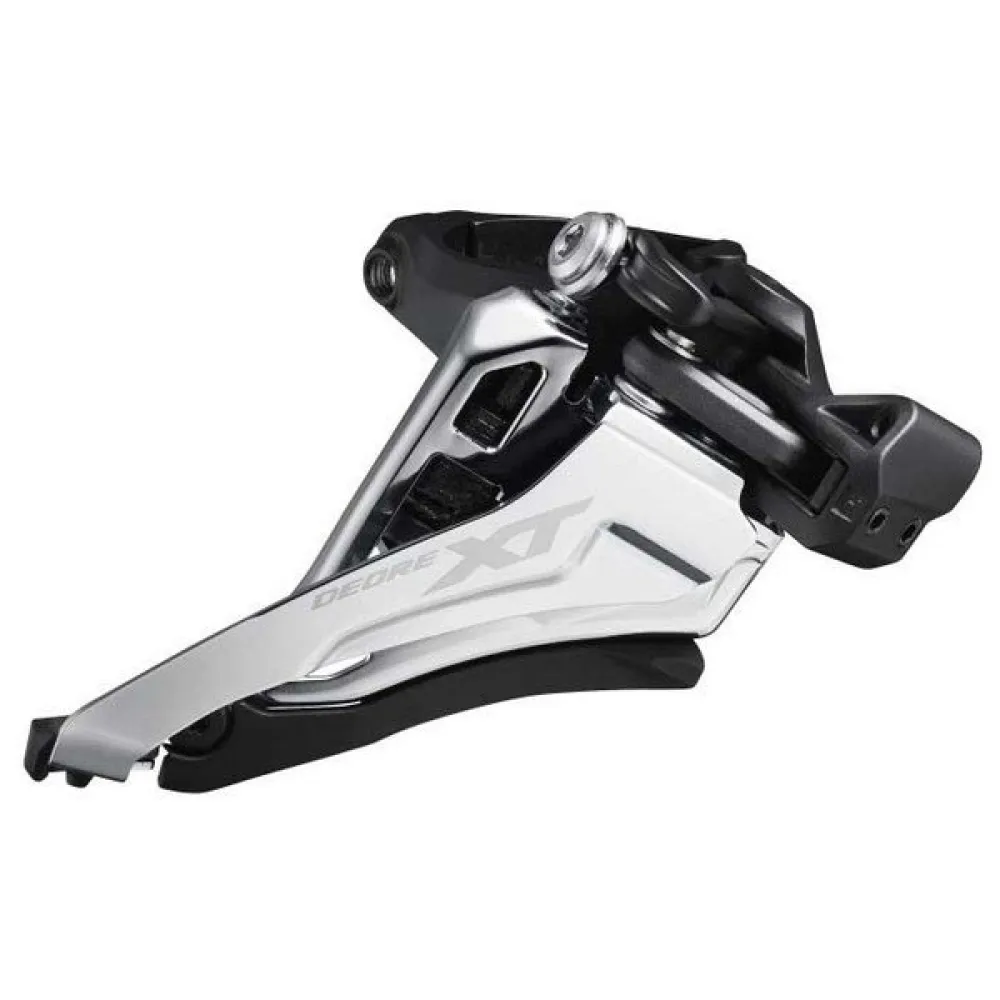

Shimano XT M8100 Clamp Front Derailleur

DEORE XT – Durability and performance for today´s mountain bikers

– The new DEORE XT M8100 series includes innovative features such as the MICRO SPLINE sprocket cassette with 10-45T or 10-51T teeth development, 1×12 or 2×12 HOLLOWTECH II crankset , powerful 2-piston and 4-piston brakes, adjustable ISPEC-EV shifters, 12-speed rear derailleur and derailleur, ICE TECHNOLOGIES FREEZA fast-cooling rotors and complete wheel sets for XC or Enduro, all adjusted to The needs of mountain bikers today.

– The DEORE XT derailleur arrives in a specification for the two 48.8 mm and 51.8 mm chain lines, but is available for Type D, Type E and Type M assemblies. Derailleur weight: FD-M8100-D: 135 g, FD-M8100-E: 106 g, FD-M8100-M: 114 g.

Features:

– Front derailleur SIDE SWING
– Increased traction range and without chain friction for long distance bicycles
– Same specifications for 48.8 mm and 51.8 mm chain lines
– Range extra wide with double front 36-26D
– Available in mounts type D, E and M
– The type M bracket needs an adapter (ø 34.9 mm)
– Compatible with 2.3 inch tires in wider rings
– own design in reliable changes
– Wide chassis mounting compatibility
– Greater tire separation
– Greater compatibility

Specifications:

– Remarks
– S-size adapter is available in OTC package only. Chainline 48.8 mm, 51.8 mm compatible
– Side Swing Drive (Rocker with cable side travel)
– Action: SIDE SWING
– Angled clamp design
– Angle travel adjustment bolt
– Cable passage type Exclusive front drive
– Cable Route Type Front-Pull
– Chain line (mm): 48.8 (142 mm OLD), 51.8 (148 mm OLD)
– Sheath angle: 66-69
– Compatible chain: HG 12-speed
– Link bearings: 6
– Support Clamp : 28.6 mm
– Clamp Bracket 31.8 mm X (w / M size adapter)
– Clamp Bracket 34.9 mm
– Mount Clamp Band 31.8 mm Clamp Band 34.9 mm
– Speeds Front: 2
– Speeds Rear: 12
– Serrated upper gear: 36 -38T
– Total capacity: 10T

Technologies:

– SIDE SWING Front Derailleur, Horizontal movement that follows the chain direction Smooth and efficient forward shifting effort
